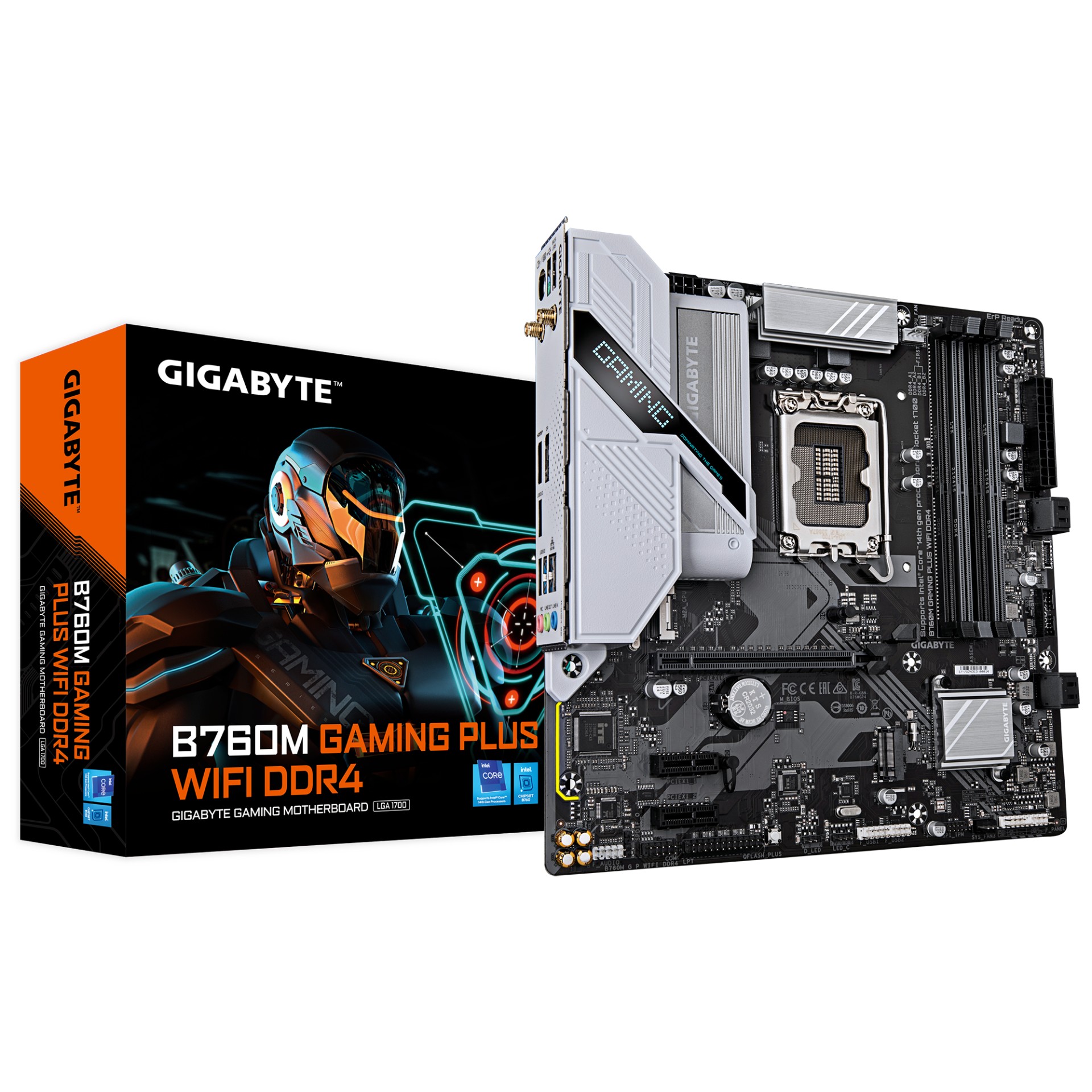

MB GIGABYTE B760M GAMING PLUS WIFI D4 LGA 1700 (4xDDR4,2xM.2,WIFI+BT)

MB GIGABYTE B760M GAMING PLUS WIFI D4 LGA 1700 (4xDDR4,2xM.2,WIFI+BT)

324324
In Stock
B760M GAMING PLUS WIFI DDR4 Supports Intel® Core™ 14th/ 13th /12th processors Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution Dual Channel DDR4：4*DIMMs XMP Memory Module Support Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors Fast Networks：Wi-Fi 6 802.11ax, GbE LAN Extended Connectivity：Front USB-C® 5Gb/s, DP, HDMI Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
$115.00
Quantity :



  • CPU
    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    Intel® B760 Express Chipset
  • Memory
    Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules
    4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:

    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.


    - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3


    (Graphics specifications may vary depending on CPU support.)
    Support for up to triple-display at the same time
  • Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


    Support for S/PDIF Out
  • LAN
    Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
  • Wireless Communication module
    Realtek® Wi-Fi 6 RTL8851BE
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11ax 160MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.


    Chipset:
    - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
  • Storage Interface
    CPU:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    - 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x parallel port header
    1 x S/PDIF Out header
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper
  • Back Panel Connectors
    2 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    2 x SMA antenna connectors (2T2R)
    1 x DisplayPort
    1 x HDMI port
    3 x USB 3.2 Gen 1 ports
    1 x RJ-45 port
    3 x audio jacks
  • I/O Controller
    iTE® I/O Controller Chip
  • H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Q-Flash Plus
  • Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor
    Micro ATX Form Factor; 24.4cm x 24.4cm
