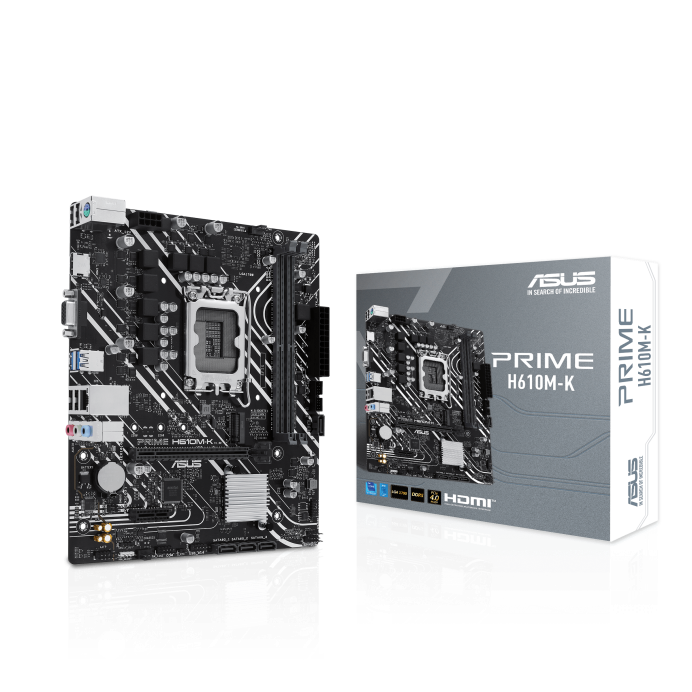

MotherBoard ASUS PRIME H610M-K D5 LGA 1700 (2xDDR5,1xM.2)
The ASUS PRIME H610M-K D5 is a micro-ATX motherboard that supports Intel's 12th, 13th, and 14th Gen processors for the LGA 1700 socket
. It provides a budget-friendly foundation for a PC build with DDR5 memory support, one M.2 slot, and PCIe 4.0 connectivity.
Specifications
According to the official ASUS website and various merchants, the specifications for the ASUS PRIME H610M-K D5 motherboard include:
CPU Support: Ready for Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors with support for Intel Turbo Boost Technology 2.0 and 3.0.
Memory: Two DIMM slots support up to 96GB of DDR5 memory with speeds up to 5600 MT/s (OC). It features a dual-channel memory architecture and supports Intel Extreme Memory Profile (XMP).
Storage: One M.2 slot supporting PCIe 3.0 x4 mode for NVMe SSDs and four SATA 6Gb/s ports.
Expansion Slots: One PCIe 4.0 x16 slot for a graphics card and one PCIe 3.0 x1 slot.
Connectivity:
Back Panel: Two USB 3.2 Gen 1 (Type-A) ports, four USB 2.0 (Type-A) ports, one Realtek 1Gb Ethernet port, one HDMI port, one VGA port, three audio jacks, and one PS/2 combo port.
Internal Headers: Includes an internal USB 3.2 Gen 1 header for two additional ports and a USB 2.0 header for two additional ports.
Graphics: Supports integrated graphics from compatible CPUs, with video outputs for HDMI (supports 4K@60Hz) and VGA.
Audio: Features a Realtek 7.1 Surround Sound High Definition Audio CODEC with audio shielding and dedicated audio PCB layers.
Form Factor: Micro-ATX, with dimensions of 9.2 inches x 8.0 inches (23.4 cm x 20.3 cm).
Key features
5X Protection III: Provides multiple hardware safeguards, including overvoltage protection, corrosion-resistant stainless-steel back I/O, and LANGuard for network protection.
Comprehensive Cooling: The motherboard has a PCH heatsink and can be configured with the included Fan Xpert 2+ software for comprehensive system fan control.
UEFI BIOS: The easy-to-use graphical UEFI BIOS offers both a simple EZ mode for beginners and an advanced mode for experienced builders to fine-tune settings.
Armoury Crate: This software offers a single, intuitive interface for managing and customizing settings for various compatible ASUS products.
