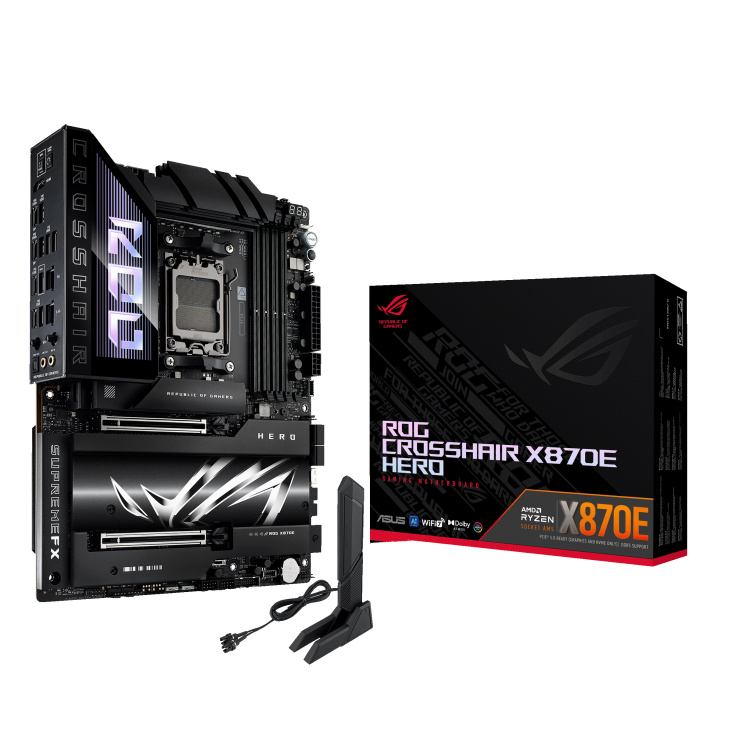

MotherBoard ASUS ROG Crosshair X870E HERO AM5 (4xDDR5,5xM.2,WIFI+BT)
The
ASUS ROG Crosshair X870E Hero is a premium ATX motherboard for high-end gaming and AI applications, built for the AMD AM5 platform and compatible with Ryzen 7000, 8000, and 9000 series processors. It features robust power delivery, advanced cooling, and extensive connectivity, including Wi-Fi 7 and two USB4 ports.
Key specifications
Processor (CPU) support: AMD Ryzen 9000, 8000, and 7000 series desktop processors on the AM5 socket.
Chipset: AMD X870E.
Form Factor: ATX (30.5 cm x 24.4 cm).
Memory: Four DDR5 DIMM slots supporting up to 256GB with dual-channel architecture. Maximum overclocked (OC) speeds vary by CPU series:
Ryzen 9000 series: 8200+ MT/s (OC)
Ryzen 8000 series: 8600+ MT/s (OC)
Ryzen 7000 series: 8000+ MT/s (OC)
Storage: The board supports a total of five M.2 slots and four SATA 6Gb/s ports, though some M.2 slots share bandwidth with PCIe slots.
Three M.2 slots are PCIe 5.0 x4 for blistering speeds up to 16 GB/s.
Two M.2 slots are PCIe 4.0 x4.
A SlimSAS port also supports PCIe 4.0 x4 mode via an optional cable.
Expansion slots: Two PCIe 5.0 x16 slots protected by SafeSlot brackets for heavy graphics cards.
Connectivity:
Wireless: Wi-Fi 7 (802.11be) with a Q-Antenna and Bluetooth v5.4.
Wired LAN: Dual Ethernet ports—one 5 Gbps (Realtek) and one 2.5 Gbps (Intel).
USB (Rear): Two USB4 (40Gbps) Type-C, two USB 10Gbps Type-C, and six USB 10Gbps Type-A.
USB (Front): Two USB 20Gbps Type-C connectors, one supporting 60W Quick Charge 4+, plus headers for additional USB 5Gbps and 2.0 ports.
ASUS Republic of Gamers Crosshair X870E Hero AM5 ... - B&H
Buy ASUS Republic of Gamers Crosshair X870E Hero AM5 ATX Motherboard featuring ATX Form Factor, AMD X870E Chipset, AM5 Socket, 4 x Dual-Channel DDR5 Slots, 4 x ...
B&H
Standout features
AI-Enhanced performance: Includes exclusive ASUS AI technologies like AI Overclocking, AI Cooling II, AI Networking II, and the new AI Cache Boost for optimizing performance, tuning, cooling, and network settings.
Robust power delivery: Features an 18+2+2 power stage design with 110A power stages for the VCORE, ensuring stable and reliable performance for high-core count CPUs.
Advanced cooling: Equipped with oversized heatsinks for the VRMs, chipset, and five M.2 slots, including a backplate for the PCIe 5.0 M.2 slots, ensuring optimal temperatures during intense workloads.
EZ PC DIY features: Simplifies the building process with innovations such as:
PCIe Slot Q-Release Slim: Makes removing graphics cards easier.
M.2 Q-Release and Q-Latch: Allows for tool-free installation and removal of M.2 SSDs.
Q-Antenna: Provides a quick and easy way to snap the Wi-Fi antenna into place.
Clear CMOS and BIOS FlashBack: Convenient buttons on the rear I/O for troubleshooting and BIOS updates.
Premium audio: Utilizes a ROG SupremeFX 7.1 ALC4082 audio codec paired with an ESS ES9219 Quad DAC for exceptional, high-fidelity audio quality, including Dolby Atmos support.
High-end aesthetics: Features a sleek, dark design with premium metallic textures, nickel-plated surfaces, and a Polymo Lighting II RGB effect built into the I/O shroud.
