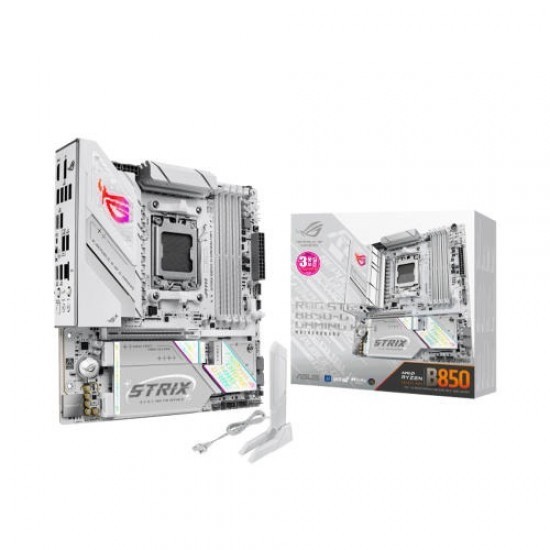

ASUS ROG Strix B850-G Gaming WiFi, a micro-ATX motherboard designed for AMD's AM5 platform. Built for gaming and high-performance computing, it is compatible with AMD Ryzen 7000, 8000, and 9000 series desktop processors and features support for PCIe 5.0 and DDR5 memory.
Key features
Form Factor and Design: The board uses a micro-ATX form factor and is notable for its sleek, all-white PCB and metallic heatsinks, catering to aesthetically focused PC builds.
Processor Support: It is built for the latest AMD processors on the AM5 socket, including Ryzen 9000, 8000, and 7000 series desktop CPUs.
Memory: The B850-G has four dual-channel DDR5 DIMM slots, supporting up to 256GB of RAM and speeds over 8000 MHz (OC). It also includes ASUS Enhanced Memory Profile (AEMP) and AMD EXPO support for memory overclocking.
Storage: For high-speed storage, the motherboard is equipped with four M.2 slots, featuring one PCIe 5.0 x4 and three PCIe 4.0 x4 slots. One of the PCIe 4.0 slots is located on the underside of the board.
Connectivity:
Networking: It provides high-speed networking with onboard WiFi 7 (802.11be) and an Intel 2.5 Gb Ethernet port.
USB Ports: The rear I/O offers a wide selection of USB ports, including one USB 20Gbps Type-C port, four USB 10Gbps ports (three Type-A, one Type-C), and two USB 2.0 ports.
Power and Cooling: The board features a robust power solution with a 14+2+1 power stage design rated for 80A per stage. Comprehensive cooling is handled by a VRM heatsink array and M.2 heatsinks.
Audio: The B850-G includes ROG SupremeFX audio, utilizing a Realtek ALC1220P codec with a Savitech SV3H712 amplifier and support for Dolby Atmos, delivering high-fidelity sound.
DIY-Friendly Features: It comes with several features to simplify PC building, such as a PCIe Slot Q-Release button, M.2 Q-Latch for tool-free SSD installation, Q-LED diagnostic lights, and BIOS FlashBack.
AI Technology: ASUS includes proprietary AI features like AI Cache Boost for optimizing performance on AMD Ryzen 9000 series CPUs and AI Advisor for providing information and guidance.
The ASRock H810M-X WIFI LGA 1851 is a micro-ATX motherboard that supports Intel Core Ultra (Series 2) processors, features 2 x DDR5 DIMM slots, a Hyper M.2 (PCIe Gen4x4) slot, 2.5G LAN, and integrated 802.11ac Wi-Fi and Bluetooth 5.0. It is available from various online retailers
The ASRock H810M-H is a micro ATX motherboard that supports the latest Intel Core Ultra (Series 2) processors (LGA 1851 socket) and features two DDR5 DIMM slots and one Hyper M.2 (PCIe Gen4x4) slot. It is an entry-level, budget-friendly option for building a new system.
ASUS TUF Gaming B760M-PLUS WIFI II is a Micro-ATX motherboard designed for Intel's 12th, 13th, and 14th Gen processors. It features DDR5 memory support, a PCIe 5.0 slot for graphics cards, and robust power delivery for stable gaming performance.
