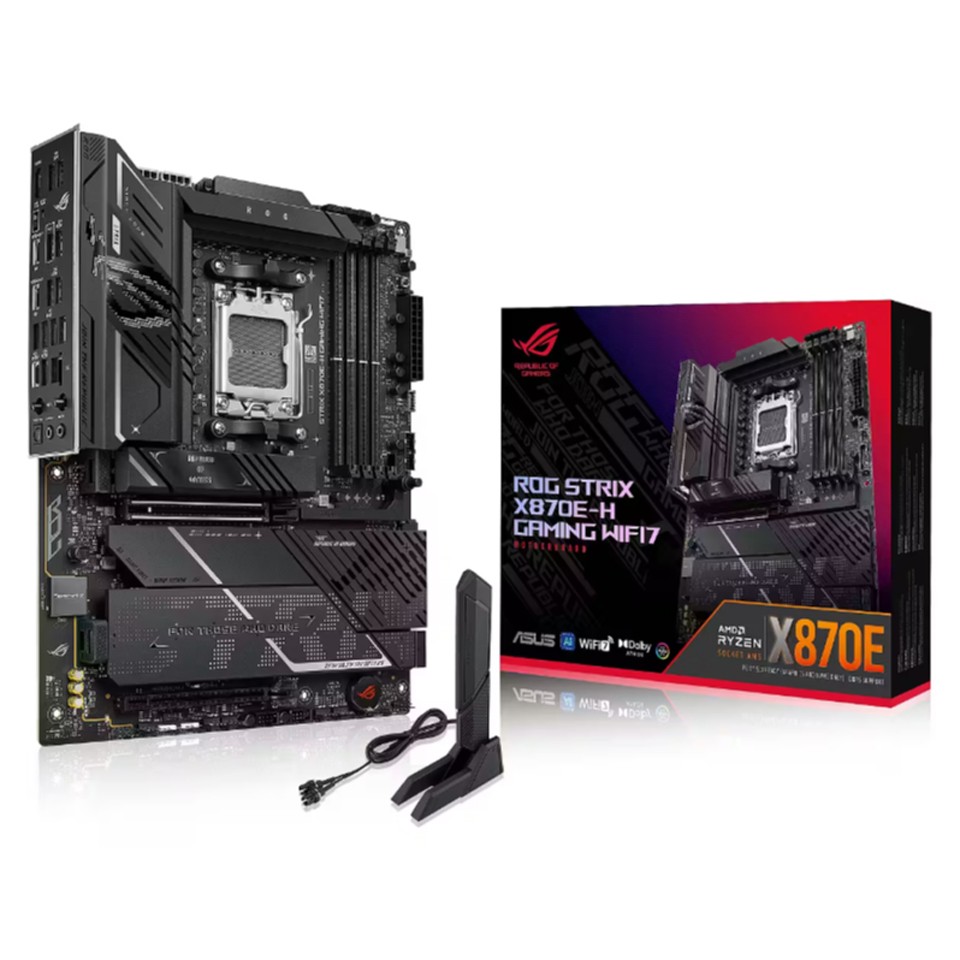

ROG Strix X870E-H Gaming WiFi7 is a premium ATX motherboard from ASUS, designed for high-performance gaming and content creation systems using AMD's AM5 socket processors. It features advanced connectivity, robust power delivery, and AI-driven optimization features for the latest Ryzen 9000 series CPUs.
Key features
CPU and power
AM5 Socket: Compatible with AMD Ryzen 9000, 8000, and 7000 series desktop processors.
Robust power solution: Features a 16+2+1 power stage design rated for 80A per phase to ensure stable power delivery for multi-core CPUs.
AI Overclocking: Uses AI to predict and set optimal CPU and cooling configurations for an effortless performance boost.
AI Cache Boost: Optimizes CPU cache and memory pathways to accelerate large language model (LLM) workflows by up to 29%.
ROG STRIX X870E-H GAMING WIFI7 - ASUS
ROG STRIX X870E-H GAMING WIFI7 * AI Overclocking. Effortless performance boost. * AI Cooling II. One-click fan tuning. * AI Cache Boost. * Robust Power Solution...
ROG
ASUS ROG STRIX X870E-H GAMING WIFI7 with 16 ... - Newegg
Sep 2, 2025 — ASUS ROG STRIX X870E-H GAMING WIFI7 AMD X870E-H ATX motherboard with 16+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 4x M. 2, PCIe 5.0, ...
Newegg
Memory
DDR5 support: The four DIMM slots support up to 256GB of DDR5 memory, with speeds reaching over 8000 MT/s through overclocking.
EXPO and AEMP: Supports AMD EXPO (Extended Profiles for Overclocking) and ASUS Enhanced Memory Profile (AEMP) for streamlined memory optimization.
Storage and expansion
PCIe 5.0: Offers two onboard PCIe 5.0 M.2 slots for blistering-fast NVMe storage performance.
Four total M.2 slots: Includes two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all equipped with heatsinks.
SATA ports: Comes with four SATA 6Gb/s ports.
Expansion slots: Features a SafeSlot reinforced PCIe 5.0 x16 slot for the latest graphics cards and an additional PCIe 4.0 x16 slot.
Connectivity
Wi-Fi 7: Provides next-generation wireless connectivity for lower latency and higher speeds on the 2.4, 5, and 6GHz bands.
Realtek 5Gb Ethernet: Includes a high-speed wired network connection.
Dual USB4 ports: Features two USB4 Type-C ports on the rear I/O with 40 Gbps of bandwidth and support for dual 4K or single 8K external displays.
Extensive USB ports: A total of 14 USB ports are on the rear I/O, including multiple 10 Gbps and 5 Gbps options.
Convenience features
DIY-friendly design: Equipped with convenience features like M.2 Q-Release, PCIe Slot Q-Release, and a pre-mounted I/O shield.
Q-LED: Provides diagnostic LEDs for troubleshooting CPU, DRAM, VGA, and boot device issues.
Integrated audio: Uses a high-definition Realtek ALC1220P audio codec with a Savitech amplifier and support for Dolby Atmos.
The ASRock H810M-X WIFI LGA 1851 is a micro-ATX motherboard that supports Intel Core Ultra (Series 2) processors, features 2 x DDR5 DIMM slots, a Hyper M.2 (PCIe Gen4x4) slot, 2.5G LAN, and integrated 802.11ac Wi-Fi and Bluetooth 5.0. It is available from various online retailers
The ASRock H810M-H is a micro ATX motherboard that supports the latest Intel Core Ultra (Series 2) processors (LGA 1851 socket) and features two DDR5 DIMM slots and one Hyper M.2 (PCIe Gen4x4) slot. It is an entry-level, budget-friendly option for building a new system.
