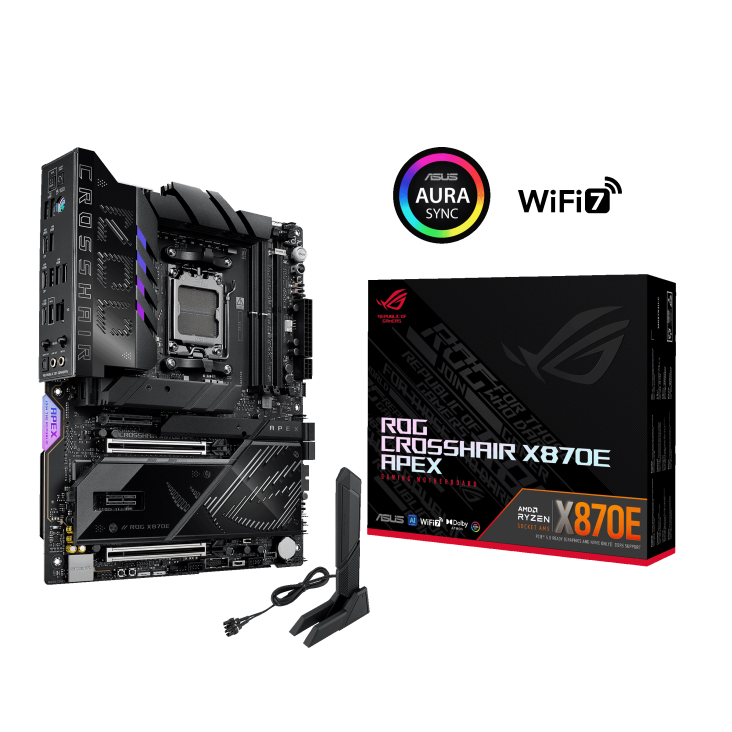

Asus ROG CROSSHAIR X870E APEX is a high-end ATX motherboard designed for extreme overclocking and advanced gaming performance on the AMD AM5 platform. As a specialized board, it features a dual-DIMM layout to prioritize maximum memory frequency over total RAM capacity, a key feature for professional overclockers and performance enthusiasts. It was officially released in April 2025.
Key specifications
CPU support: AMD AM5 socket for Ryzen 9000, 8000, and 7000 Series processors.
Memory: Two DDR5 DIMM slots for up to 128 GB of RAM. The reduced slot count is optimized for higher memory speeds, with official overclocking support up to 9600+ MT/s on Ryzen 8000 series CPUs and 8200+ MT/s on Ryzen 9000 series CPUs. It also includes an ROG Memory Fan Kit for enhanced cooling during memory overclocking.
Power delivery: A robust 18+2+2 power stage design, with each stage rated for up to 110 amps, provides stable and clean power for extreme overclocking.
Expansion slots: Two PCIe 5.0 x16 slots for next-generation graphics cards. It also has one PCIe 4.0 x4 and one PCIe 3.0 x1 slot.
Storage: The board supports up to five M.2 drives through a combination of onboard slots and an included ROG DIMM.2 card.
Onboard: Three PCIe 5.0 x4 M.2 slots.
ROG DIMM.2 card: Two PCIe 4.0 x4 M.2 slots.
Networking:
Realtek 5 Gbps Ethernet for high-speed wired connectivity.
Wi-Fi 7 and Bluetooth 5.4 wireless connectivity.
Audio: ROG SupremeFX 7.1 surround sound audio with the ALC4080 codec and an integrated Savitech SV3H712 amplifier.
Rear I/O ports: Includes two USB4 (40 Gbps) Type-C ports for high-speed data transfers and display output, plus an array of other USB ports.
ROG CROSSHAIR X870E APEX
* SPECIFICATIONS. * ASUS AI INTELLIGENCE. ASUS AI Cache Boost. ASUS AI Advisor. AI Overclocking. AI Cooling II. AI Networking II. * PERFORMANCE. Overclocking. M...
ROG
Asus ROG Crosshair X870E Apex is available for pre-order on ...
Based on a listing at Newegg, the ROG Crosshair X870E Apex is available for pre-order starting at $749 and hits shelves April 4th next month.
Tom's Hardware
Overclocking and enthusiast features
The Apex is packed with features designed specifically for hardcore overclockers.
ASUS AI Overclocking: An intelligent feature that profiles the CPU and cooling to predict optimal settings for pushing the system to its limits automatically.
Overclocker's Toolkit: Dedicated physical buttons for functions like Safe Boot, ReTry, Slow Mode, and LN2 Mode for fine-tuned control during extreme overclocking attempts.
ProbeIt: Includes a range of integrated measurement points for advanced voltage monitoring.
Advanced cooling: Massive, integrated heatsinks cover the VRM and M.2 slots to ensure thermal stability under intense loads.
EZ PC DIY features: User-friendly additions like PCIe Slot Q-Release Slim, M.2 Q-Latch, and a BIOS FlashBack button simplify the building process and maintenance.
The ASRock H810M-X WIFI LGA 1851 is a micro-ATX motherboard that supports Intel Core Ultra (Series 2) processors, features 2 x DDR5 DIMM slots, a Hyper M.2 (PCIe Gen4x4) slot, 2.5G LAN, and integrated 802.11ac Wi-Fi and Bluetooth 5.0. It is available from various online retailers
The ASRock H810M-H is a micro ATX motherboard that supports the latest Intel Core Ultra (Series 2) processors (LGA 1851 socket) and features two DDR5 DIMM slots and one Hyper M.2 (PCIe Gen4x4) slot. It is an entry-level, budget-friendly option for building a new system.
