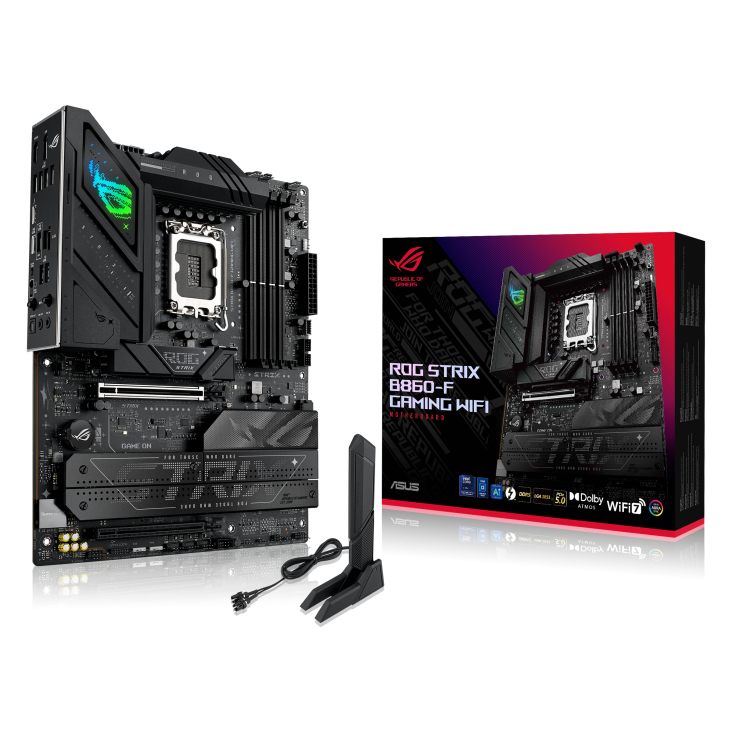

Name: MotherBoard ROG STRIX B860-F GAMING WIFI LGA1851 (4xDDR5,4xM2,WIFI+BT)
Price: 295 $
Availability: InStock
Rating: 5 (35 reviews)

MotherBoard ROG STRIX B860-F GAMING WIFI LGA1851 (4xDDR5,4xM2,WIFI+BT)

Product code: 01107

Status: In Stock

Price: $295.00

Quantity :

Product info
Comment

Model

ROG STRIX B860-F GAMING WIFI

News & Updates

CPU

Intel^® Socket LGA1851 for Intel^® Core™ Ultra Processors(Series 2)
Supports Intel^®Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^® B860 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5
Support up to 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel^® Extreme Memory Profile (XMP) memory module
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
*Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI™ port***
1 x Intel^® Thunderbolt™ 4 port (USB Type-C^®) supports DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4.
*** Supports 8K@60Hz with DSC as specified in HDMI 2.1.
**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
***** VGA resolution support depends on processors' or graphic cards' resolution.
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

Intel^® Core™ Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot (supports x16 mode)
Intel^®B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel^® Core™ Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel^® B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
4 x SATA 6Gb/s ports**
* M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with SSD device, PCIEX16(G4) will be disabled.
** Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Intel^® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth^® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth^® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 9 ports)
1 x Thunderbolt™ 4 port (1 x USB Type-C^®)
1 x USB 20Gbps port (1 x USB Type-C^®)
1 x USB 10Gbps port (1 x Type-A)
6 x USB 5Gbps ports (6 x Type-A)
Front USB (Total 6 ports)
1 x USB 10Gbps (1 x USB Type-C^®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
* USB Type-C^® power delivery output: max. 5V/3A

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Back Panel I/O Ports

1 x Thunderbolt™ 4 (1 x USB Type-C^®)
1 x USB 20Gbps port (1 x USB Type-C^®)
1 x USB 10Gbps port (1 x Type-A)
6 x USB 5Gbps ports (6 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel^® 2.5Gb Ethernet port
2 x audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C^®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4^®) header

Special Features

Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen2 headers

Software Features

ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- Power Saving
ASUS Driver Hub
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
NPU Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

Remote Management Features

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubbers
Documentation
1 x Quick start guide

Operating System

Windows^®11 (22H2 & later)

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
